Technics Ultra-Pitch

The mod enables the possibility of three extra pitch ranges.
Default ±16% ,±25% and ±50% and the original ±8.
Ranges are also fully customizable with the TUPM Configurator tool.
It also has the choise of controlling the platter via MIDI in. Range is two full octaves. Using the 33 and 45 button you can navigate in a menu system with the help of the full RGB pitch led that is included in the mod. The flowchart and the video explains the navigation in detail.

The mod is currently tested on SL-12xx mk2, mk5 and m3d.

Price for one kit (one turntable) is 140€

Installation

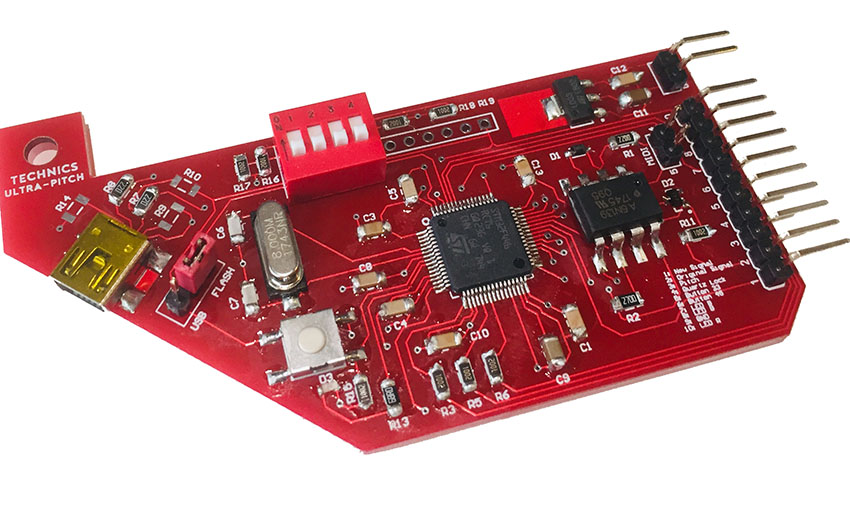

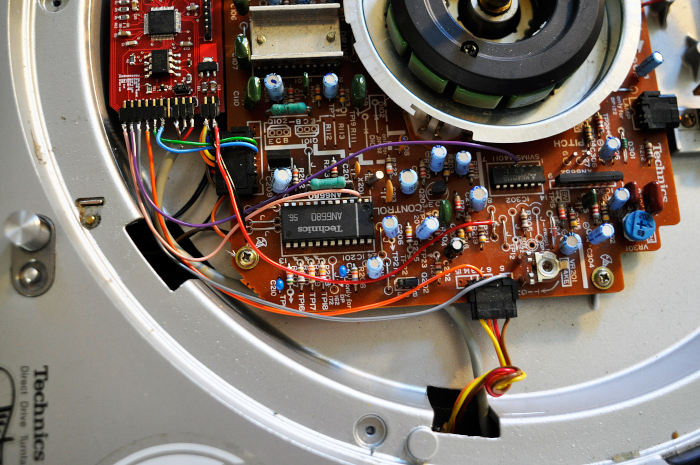

The mod includes a new pitch LED-PCB, the main mod board and wire harness. You need to replace 3 capacitors (also included) and cut one trace on the Technics main board. The mod is currently tested on SL-12xx mk2, mk5 and m3d.

Instructions for installing


Flowchart Rx10

Flowchart(old)

Media



Firmware Update

Firmware update instructions (Windows/Mac)

Firmware update instructions (OSX (.dfu))

Latest Release


-Improved button handeling
-TUPM configurator support.
-Digital normal 8% (if choosen by DIP 4)
-Other minor changes

Firmware Release 3-1-0 2023-08-30
For mod with RGB pitch led and DIP-Switch on PCB (current)
Download R310

Firmware Release 2-1-0 2023-08-30
For mod with RGB pitch led
Download R210

Firmware Release 1-1-0 2023-08-30
For mod with two color pitch led(original)
Download R110

Old Firmware


Firmware Release 3-0-5 2018-10-01
For mod with RGB pitch led and DIP-Switch on PCB (current)
-Added button calibration
-New pitchfader calibration.
-Improved memory reset
-DIP-Switch support
Download R305

Firmware Release 2-0-5 2018-10-01
For mod with RGB pitch led
-Added button calibration
-New pitchfader calibration.
-Improved memory reset
Download R205

Firmware Release 1-0-5 2018-10-01
For mod with two color pitch led(original)
-Added button calibration
-New pitchfader calibration.
-Improved memory reset
Download R105

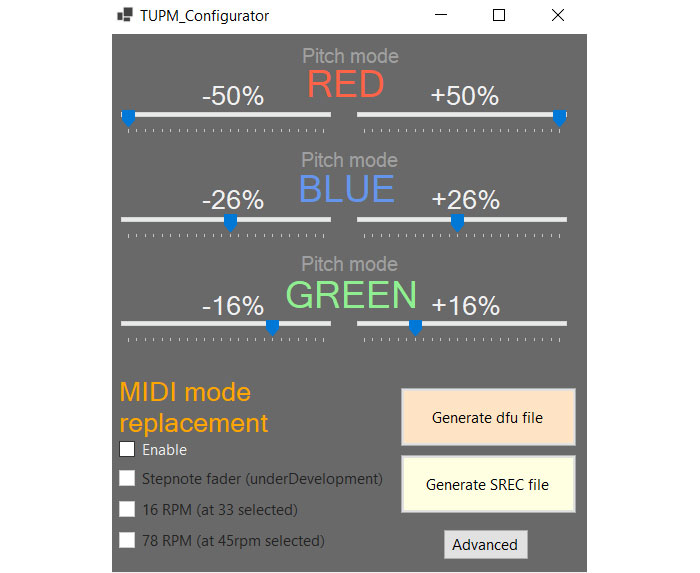

TUPM Configurator


A tool for customizing pitch ranges and other things.
Only for Release x-1-0
Download TUPM Configurator (Win)
Instructions
